The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38/720 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 38mm Forward Seal Disc during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), Not Included. The 18-38mm Delay Drilling Tool (RDDT) is available in the AeroTech Accessories section of this website.
This RMS motor reload utilizes RCSs exclusive Metalstorm™ aerospace grade composite propellant formulation. Metalstorm™ is a sparky propellant, lights easily and produces a large brilliant white exhaust plume, a long yellow-orange dense spark trail, and plentiful white sparks that fan out in flight. As with all rocket motors using spark-generating propellants, special precautions must be taken to avoid fires around the launch pad by clearing the immediate area of all combustible materials in accordance with applicable fire and safety codes.

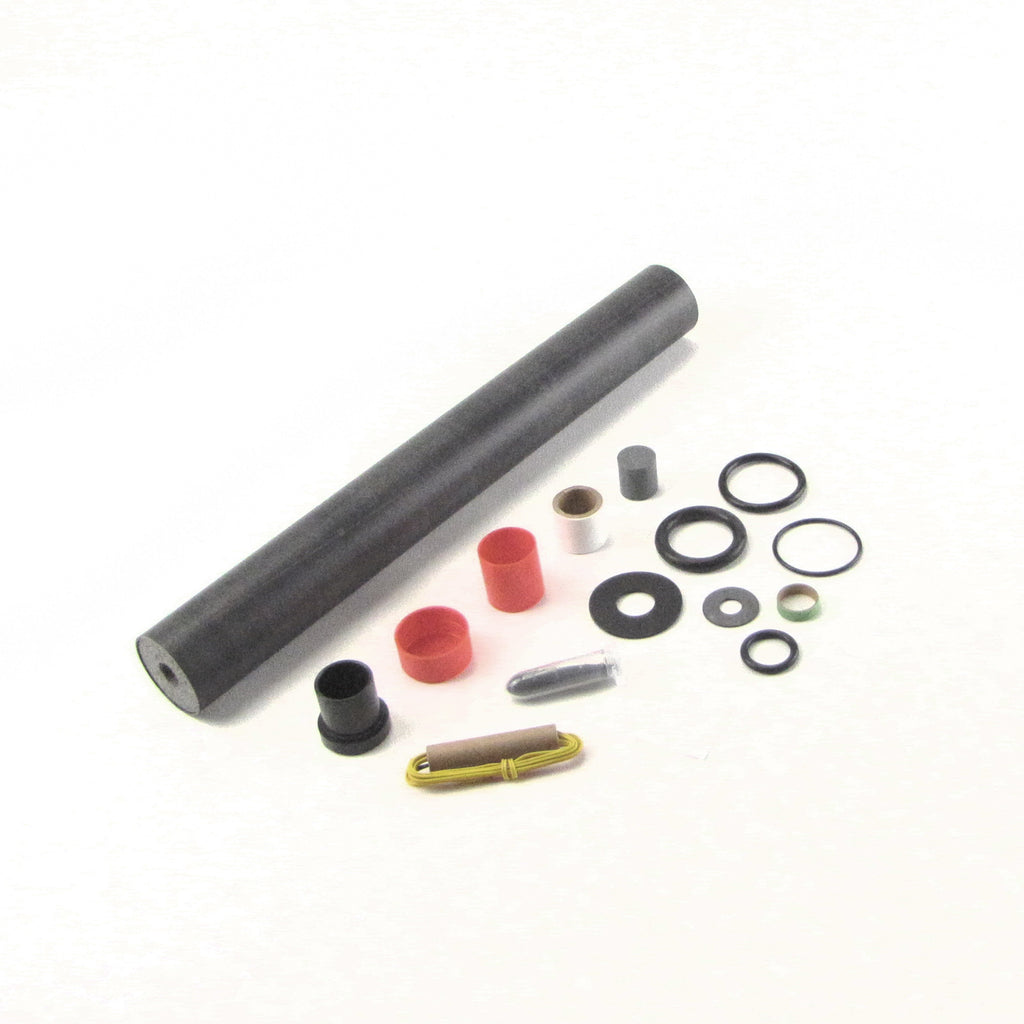

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 2 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 2 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
-

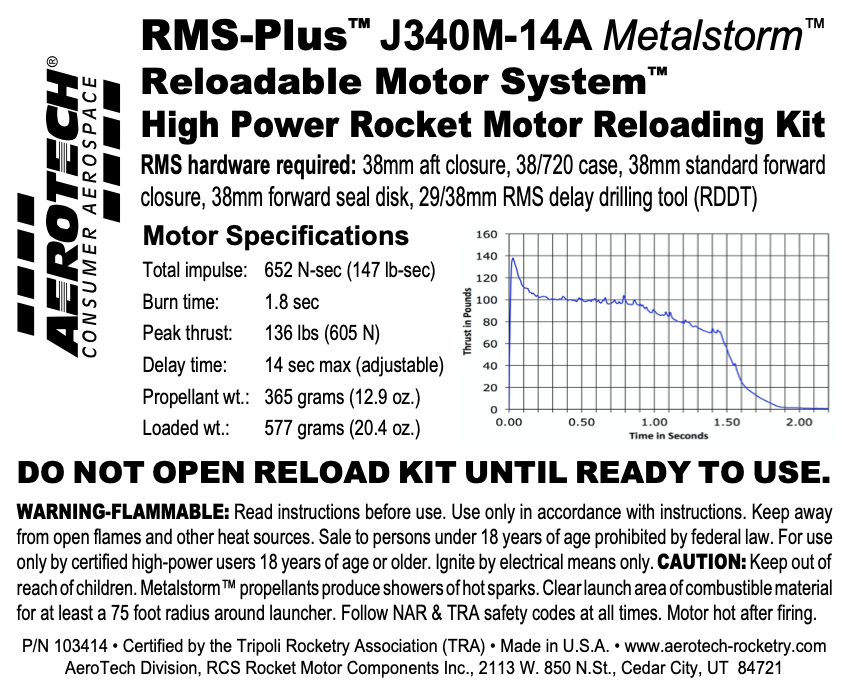

Specifications:
Motor Diameter: 1.5 inches (38mm)
Casing Length: 13.26 inches (337mm)
Hardware Required: RMS-38/720
Total Impulse: 651.7 N-sec
Average Thrust: 354.1 newtons
Peak Thrust: 605 N-sec
Thrust Duration: 1.8 seconds
Delay Time: adjustable up to 14 seconds
Propellant Weight: 365 grams
Motor Weight: 577 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
