The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-98/7680 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a stainless steel forward seal disc (98FSDSS) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.
The M4500ST-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.
This RMS motor reload utilizes RCSs exclusive Super Thunder™ aerospace grade composite propellant formulation, which produces a bright violet-blue flame with a minimum of exhaust smoke. Super Thunder™ motors provide a higher ISP than Blue Thunder™.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 3 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 3 certification is received. Also, this motor requires U.S. State Department Licensing (SDL) for export (international shipments).
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

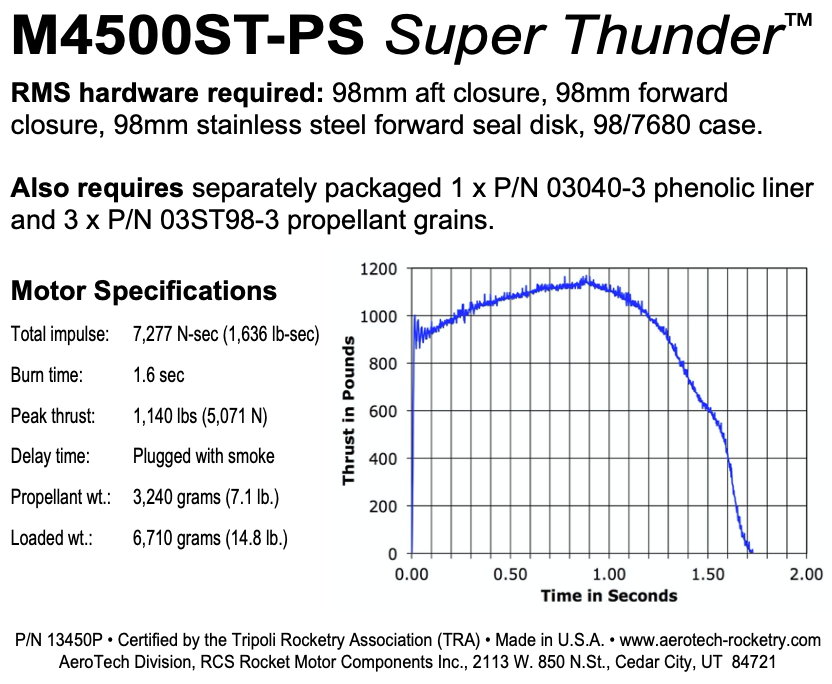

Motor Diameter: 3.875 inches (98mm)
Casing Length: 23.50 inches (597mm)
Hardware Required: RMS-98/7680
Total Impulse: 7277 N-sec
Average Thrust: 4500 newtons
Peak Thrust: 5071 N-sec
Thrust Duration: 1.6 seconds
Delay Time: Plugged
Propellant Weight: 3240 grams
Motor Weight: 6710 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
