The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38/240 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), Not Included. The 18-38mm Delay Drilling Tool (RDDT) is available in the AeroTech Accessories section of this website.
This RMS motor reload utilizes RCSs exclusive White Lightning™ aerospace grade composite propellant formulation, which produces a gorgeous bright white flame with lots of dense white smoke and a throaty roar at lift-off.

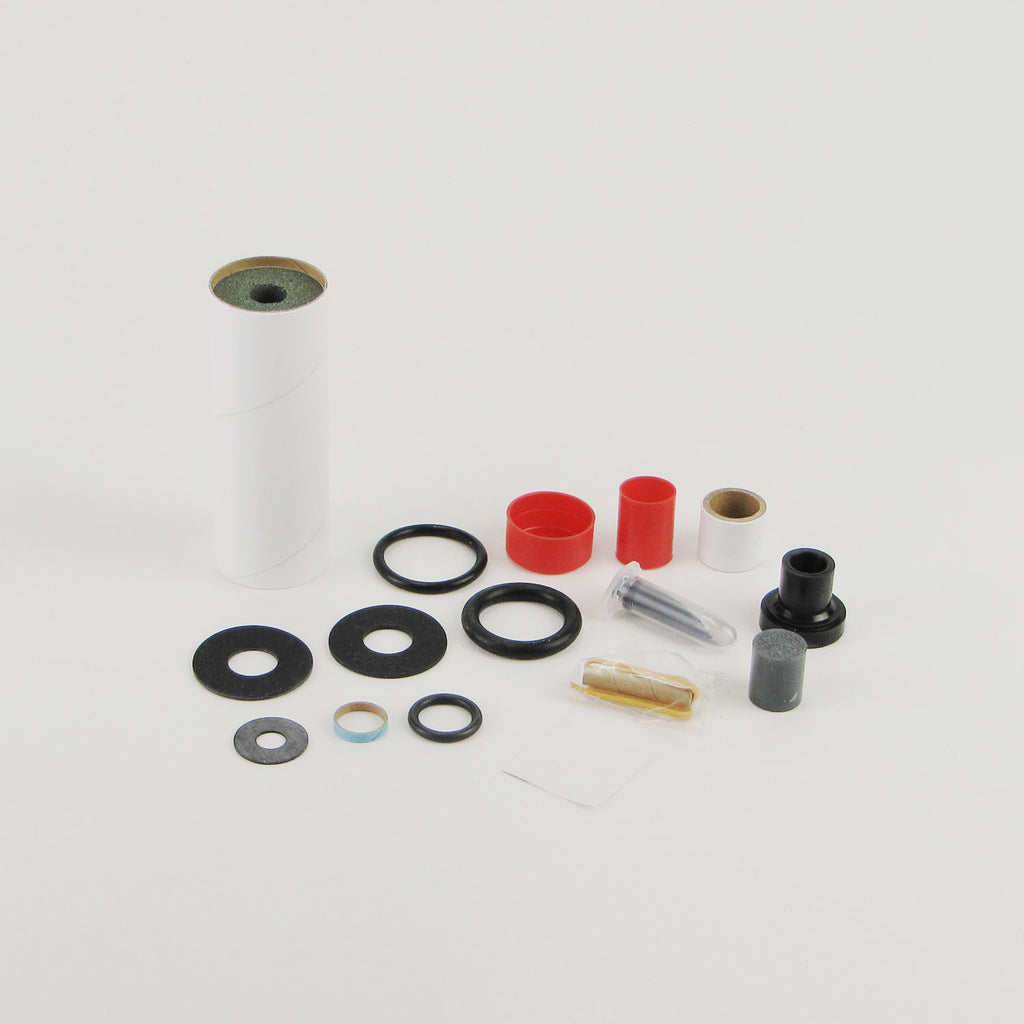

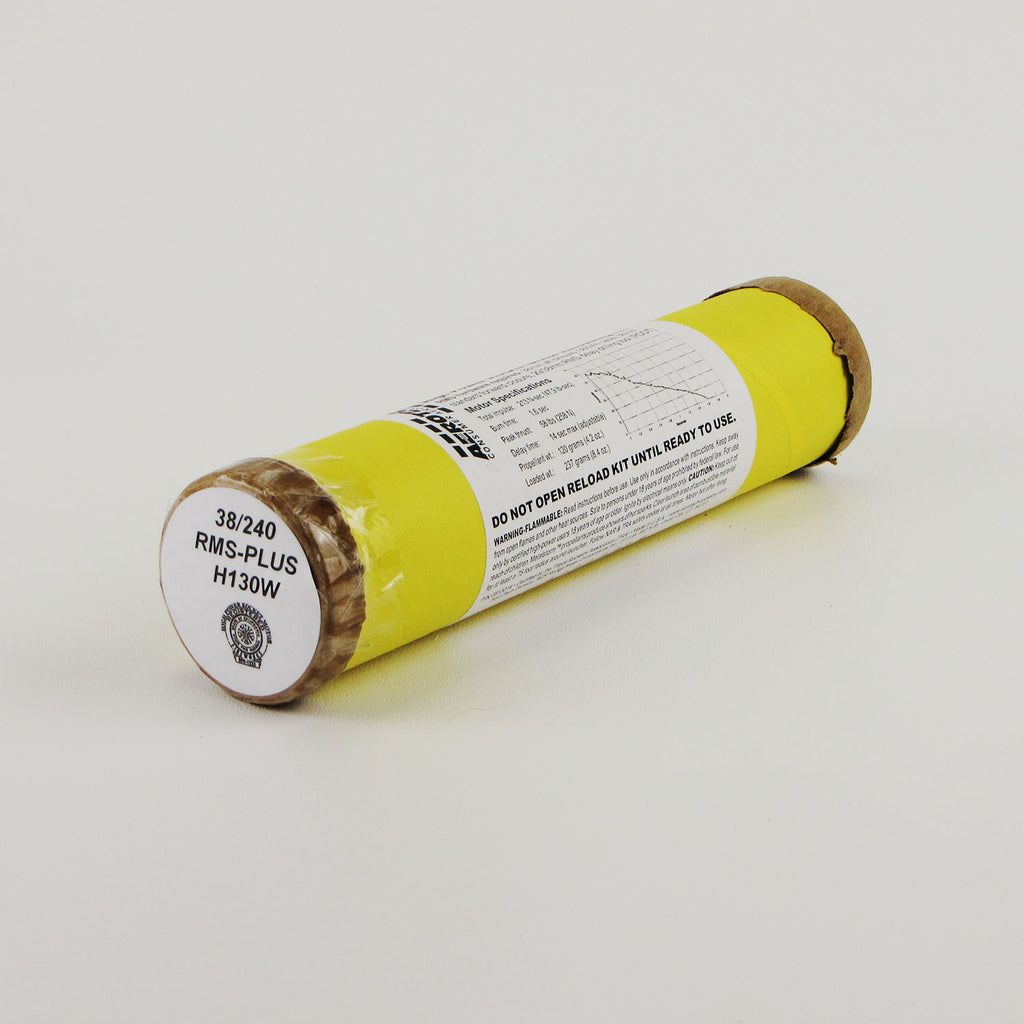

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. This AeroTech motor is U.S. mailable with no hazmat fee! The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
-

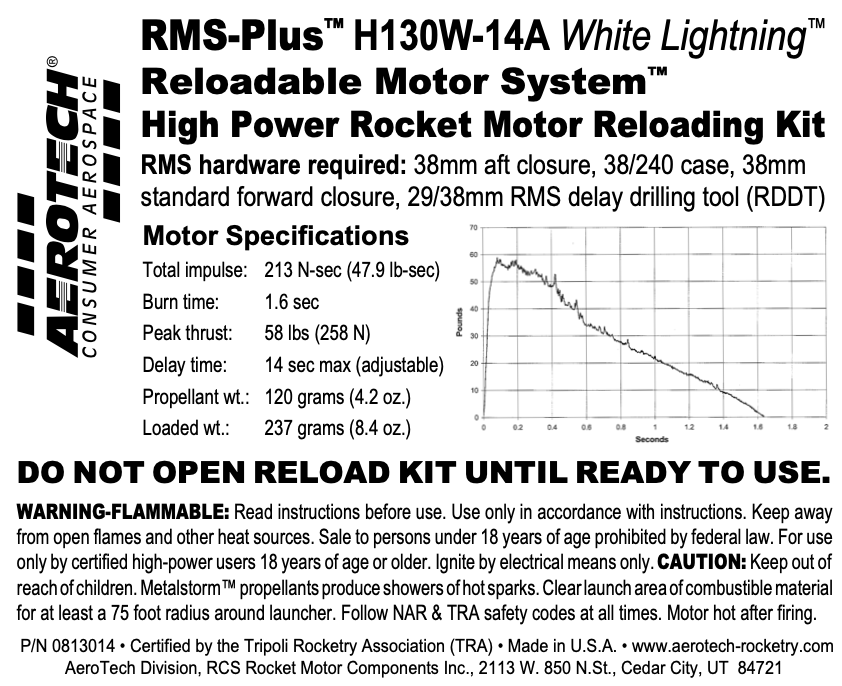

Specifications:
Motor Diameter: 1.5 inches (38mm)
Casing Length: 6.0 inches (152mm)
Hardware Required: RMS-38/240
Total Impulse: 210 N-sec
Average Thrust: 130 newtons
Peak Thrust: 260 N-sec
Thrust Duration: 2.0 seconds
Delay Time: adjustable up to 14 seconds
Propellant Weight: 120 grams
Motor Weight: 237 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
